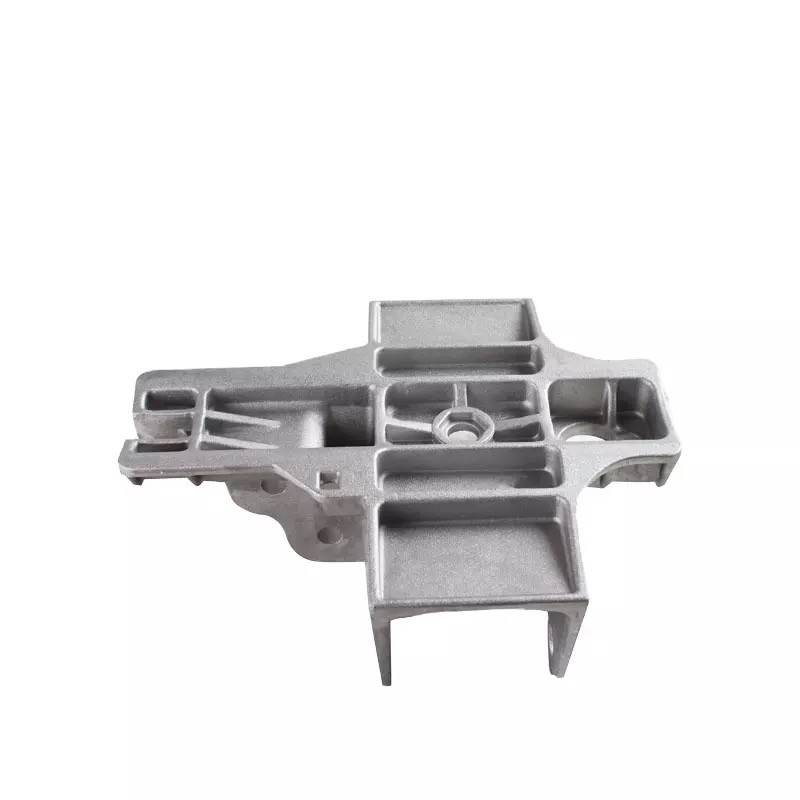

CNC Magnesium Alloy Die Casting Auto Cast Magnesium Alloy
| Brand Name: | EMT |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000PCS /Month |
Solid Works Magnesium Alloy Die Casting
,CNC Magnesium Alloy Die Casting
,Auto cast magnesium alloy
CNC Magnesium And Magnesium Alloys Auto Power Tool Parts
Magnesium is an attractive material for automotive use, primarily because of its light weight - 36% lighter per unit volume than aluminum and 78% lighter than iron. When alloyed, Mg has the highest strength-to-weight ratio of all the structural metals.
Now some medium-strength aluminum alloys have been replaced by rare earth high-strength magnesium alloys,Get application on fighter planes. With the development of magnesium alloy preparation technology, the material properties such as strength, specific stiffness, heat resistance and corrosion resistance are further improved, so that the scope of application is further expanded. At present, the main application areas include various civil and military aircraft engine parts, propellers, gearboxes, support structures, and some parts of rockets, missiles and satellites. The temperature resistance of the half-fold is improved, and the various engine boxes, transmission boxes and power supply devices of the aircraft will gradually be made of magnesium alloy.
Magnesium alloy plates are mainly used to manufacture various wall panels, fairings, engine hoods, doors, cover panels, frames, fairings, wing tips, tail surfaces, ailerons and mailboxes.
Comparison of mechanical Properties of several die-casting alloys (ratio to density in parenthesis)
| Description: |
magnesium alloy (AZ91D) |
aluminium alloy (A380) |
zinc alloy (AG40A) |
|
| Density (g/cm3) | 1.8 | 2.7 | 6.7 | |
| Tensile strength (Mpa) |
230 (130) |
330 (120) |
280 (42) |
|
| Yield strength (Mpa) | 160(88) | 170(61) | - | |
| Shear strength (Mpa) | 140(77) | 190(69) | 210(32) | |
|
3 | 3 | 10 | |
| Tensile modulus of Elasticity (Gpa) | 45(25) | 71(26) | - | |
| Shear stiffness modulus (Gpa) | 17(9) | 27(10) | - | |
| Brinell | 63 | 80 | 82 | |
|
fatigue strength Moore 5*100000000(Mpa) |
97(54) | 150(54) | 48(7.1) | |
|
Creep strength (Mpa) |
70.F,100 hour | 140(77) | 170(61) | 76(11) |
| 200.F,100 hour | 80(50) | 160(59) | 24(3.6) | |
| 70.F,100 day | 140(77) | 170(61) | 48(7.2) | |
|
5000psi | 25 | 1 | 18 |
| 15000psi | 53 | 4 | 40 |
|
Advantage:
FAQ:
1. Q:Are you a factory or a trading company?
A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.
2. Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?
A: Yes, with written standard procedures.
4. Q: Is there a procedure to conduct random product inspections after final packaging?
A: Yes, with clear standard and written inspection records.
5. Q: How can I get a quotation?
A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)
6. Q: What is your payment terms?
A: T/T, Western Union, etc.
