MG-4000 Magnesium Alloy Die Casting Machine Safe Environmentally Friendly Production
| Brand Name: | EMT |
| Model Number: | MG-4000 |
| MOQ: | 1 |
Detail Information
Place of Origin:
China
Certification:
ISO9001，IATF16949
Mold Locking Force:
40000kN
Weight:
270000kg
Energy Saving:
Yes
Control System:
PLC
Injection Speed:
5m/s
Material:
Magnesium Alloy
Casting Method:
High Pressure Die Casting
Die Height:
900-2100mm
Max. Casting Weight:
19.8kg
Injection Pressure:
100 MPa
Oem:
Yes
Power Supply:
380V/50Hz
Warranty:
1 Year
Total Electric Capacity:
550 KW
Power Source:
Electric
Technology:
Thixomolding
Machine Type:
Thixomolding Machine
Product Type:
Die Casting Machine
Injection Stroke:
600 Mm
Operation Mode:
Automatic
Highlight:
Safe Mg Alloy Die Casting Machine
,Magnesium Alloy Production Die Casting Machine
,Environmentally Friendly magnesium alloy die casting
Product Description
Safe and Environmentally Friendly Production with the MG-4000 Magnesium Alloy Die Casting Machine.
| No. | DESCRIPTION | UNIT | MG4000 |
| 1 | Mold Locking Force | kN | 40000 |
| 2 | Column Spacing (Horizontal × Vertical) | mm | 1800×1800 |
| 3 | Screw Diameter | mm | 170 |
| 4 | Injection Stroke | mm | 600 |
| 5 | Injection Nozzle Dimension | mm | φ40×R70 |
| 6 | Systematic Operating Pressure | MPa | 16 |
| 7 | Heater’s Output Power | kW | 260 |
| 8 | Machine’s Overall Dimension (L×W×H) | m | 19×7.2×6 |

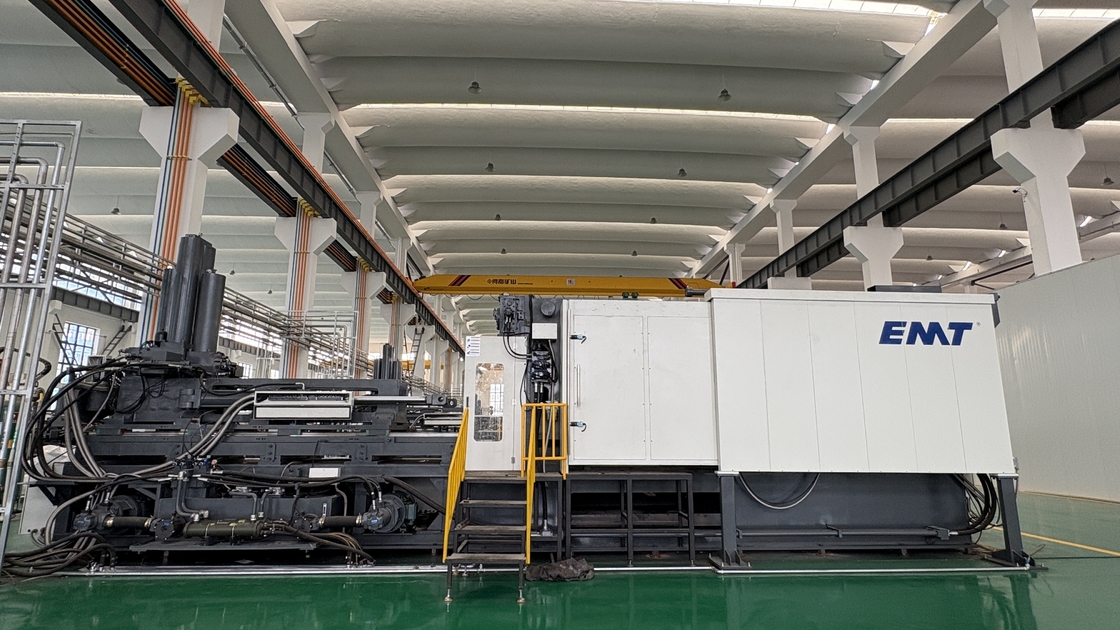

The MG-4000 magnesium alloy thixomolding machine is a high-performance equipment independently developed by Jiangsu EMT Precision Manufacturing Co., Ltd. It is designed for the thixomolding process of magnesium alloys and is suitable for producing various high-precision and high-quality magnesium alloy products, such as automotive parts, electronic product casings, aerospace components, etc. This equipment adopts advanced technology and design concepts, and has the characteristics of safety, environmental protection, efficiency, precision, etc., providing customers with reliable production solutions.
Service industry:
- 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.
- New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.
- Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.
- Medical field: surgical instruments, medical equipment, etc.
- Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
