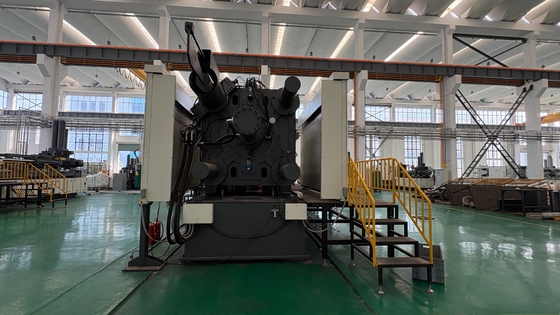

Advanced MG-2500 Thixomolding Machine For High Precision Magnesium Alloy Products
| Brand Name: | EMT |
| Model Number: | MG-2500 |
| MOQ: | 1 |
Detail Information
Place of Origin:
China
Certification:
ISO9001，IATF16949
Power Supply:
380V/50Hz
Product Type:
Injection Molding Machine
Production Capacity:
High
Casting Method:
Die Casting
Mold Locking Force:
25000KN
Application:
Manufacturing Of Lightweight And High-strength Metal Components
Screw Speed:
10-285rpm
Operate:
Simple
Injection Pressure:
100MPa
Operational:
Safety
Warranty:
1 Year
Screw Diameter:
150mm
Control System:
PLC Control
Power Source:
Electric
Power Consumption:
400kW
Oem:
Yes
Forming Process:
Semi-solid Thixoforming
Highlight:
High Precision Thixomolding Machine
,Advanced Thixomolding Machine
,Magnesium Alloy Products thixomolding machine
Product Description
Advanced Technology and Design MG-2500 Thixomolding Machine for High-Precision Magnesium Alloy Products.
| No. | DESCRIPTION | UNIT | MG2500 |
| 1 | Mold Locking Force | kN | 25000 |
| 2 | Column Spacing (Horizontal × Vertical) | mm | 1500×1500 |
| 3 | Screw Diameter | mm | 150 |
| 4 | Injection Stroke | mm | 400 |
| 5 | Injection Nozzle Dimension | mm | φ35×R50 |
| 6 | Systematic Operating Pressure | MPa | 16 |
| 7 | Heater’s Output Power | kW | 150 |
| 8 | Machine’s Overall Dimension (L×W×H) | m | 16.3×6.7×5 |
The MG-2500 magnesium alloy thixomolding machine is a high-performance equipment independently developed by Jiangsu EMT Precision Manufacturing Co., Ltd. It is designed for the thixomolding process of magnesium alloys and is suitable for producing various high-precision and high-quality magnesium alloy products, such as automotive parts, electronic product casings, aerospace components, etc. This equipment adopts advanced technology and design concepts, and has the characteristics of safety, environmental protection, efficiency, precision, etc., providing customers with reliable production solutions.
Service industry:
- 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.
- New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.
- Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.
- Medical field: surgical instruments, medical equipment, etc.
- Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
