High-Performance EMT MG-300 Magnesium Alloy Thixomolding Machine for Precision Production of Automotive Electronic and Aerospace Products
| Brand Name: | EMT |
| Model Number: | MG-300 |
| MOQ: | 1 |
| Price: | Negotiable |
Detail Information
Place of Origin:
China
Certification:
ISO9001,IATF 16949
Injection Pressure:
110/65 MPa
Warranty:
1 Year
Operate:
Simple
Application:
Automotive Industry
Injection Temperature:
600 Degrees Celsius
Model:
MG300
Production Capacity:
120 Pieces Per Hour
Energy Saving:
Yes
Injection Weight:
946g
Operating System:
Touch Screen Or Computer
Screw Speed:
10-285rpm
Oem:
Yes
Product Type:
Injection Molding Machine
Technology:
Thixomolding
Power Supply:
380V/50Hz
Injection Speed:
Up To 500 Mm/s
Casting Method:
Die Casting
Power Source:
Electric Or Hydraulic
Dimensions:
Customer Required
Highlight:
3C Electronics Thixomolding Machine
,New Energy Vehicles Thixomolding Machine
,Thixomolding Machine Production Solutions
Product Description

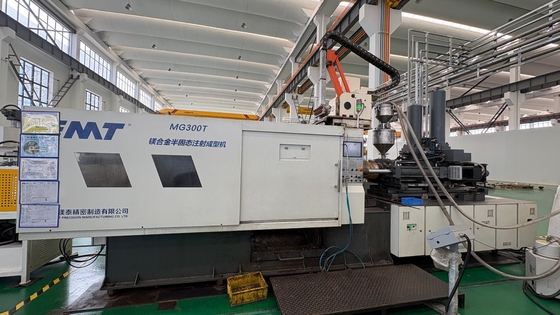

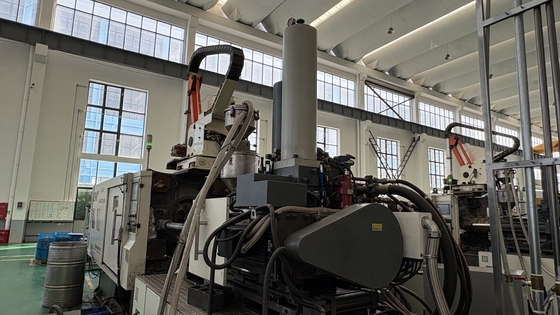

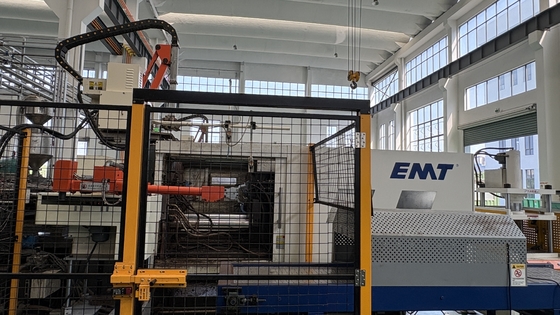

High-Performance EMT MG-300 Magnesium Alloy Thixomolding Machine for Precision Production of Automotive Electronic and Aerospace Products
| No. | DESCRIPTION | UNIT | MG300 |
| 1 | Mold Locking Force | kN | 3000 |
| 2 | Way Of Mold Installation | - | T-groove way |
| 3 | Screw Diameter | mm | 51/66 |
| 4 | Injection Nozzle Inlet | mm | 50 |
| 5 | Injection Nozzle Contact Force | kN | 369 |
| 6 | Systematic Operating Pressure | MPa | 16 |
| 7 | Melting Servo Motor Power | kW | 16 |
| 8 | Machine’s Overall Dimension (L×W×H) | m | 6.8×1.8×2.6 |
Service industry:
- 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.
- New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.
- Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.
- Medical field: surgical instruments, medical equipment, etc.
- Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
