25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment

Brand Name:	EMT
Model Number:	MG-2500
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，IATF16949

Control System:

PLC

Forming Process:

Thixoforming

Warranty:

1 Year

Weight:

150000kg

Power Supply:

380V/50Hz

Product Type:

Die Casting Machine

Production Capacity:

High

Forming Way:

Semi-solid

Power Source:

Electric

Operational:

Safety

Casting Method:

Die Casting

Mold Locking Force:

25000KN

Operate:

Simple

Injection Pressure:

100 MPa

Application:

Manufacturing Of Lightweight And High-strength Metal Components

Product Description

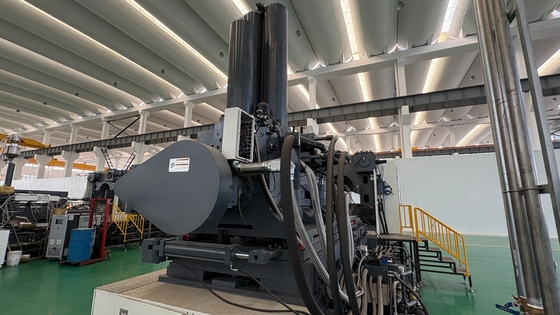

25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment.

No.	DESCRIPTION	UNIT	MG2500
1	Mold Locking Force	kN	25000
2	Clamping Plate Dimension (Horizontal × Vertical)	mm	2350×2350
3	Screw Diameter	mm	150
4	Maximum Injection Speed Of Screw	m∕s	5
5	Rotation Speed Of Screw	r∕min	10-285
6	Systematic Operating Pressure	MPa	16
7	Electric Motor Power	kW	75×2
8	Machine’s Overall Dimension (L×W×H)	m	16.3×6.7×5

Full range of thixomolding equipment for magnesium alloys: covering multiple scene requirements:

The magnesium alloy thixomolding equipment independently developed by EMT has a complete tonnage matrix (300T, 650T, 800T, 1500T, 2500T, 4000T), which meets the diversified production needs from small precision parts (3C electronics, medical precision parts) to large structural parts (new energy vehicles, aerospace, industrial equipment). It can form magnesium alloy products ranging from 0.01-20kg, and provide selection services according to the customer's magnesium alloy product situation.

25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment 0

Service industry:

3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment 1

New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment 2

Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment 3

Medical field: surgical instruments, medical equipment, etc.

25000kN High-Performance Thixomolding Machine for Diversified Production Needs EMT Magnesium Alloy Equipment 4

Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
