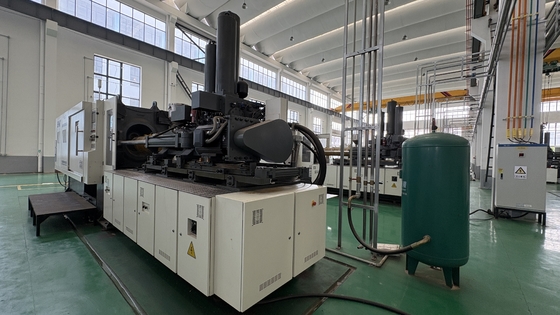

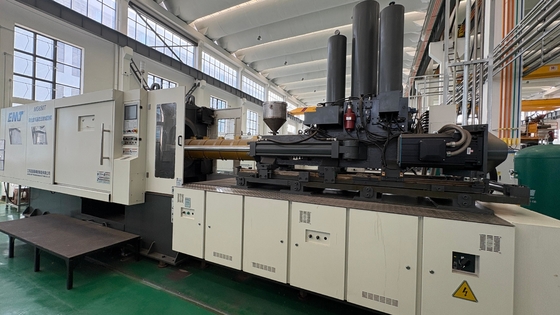

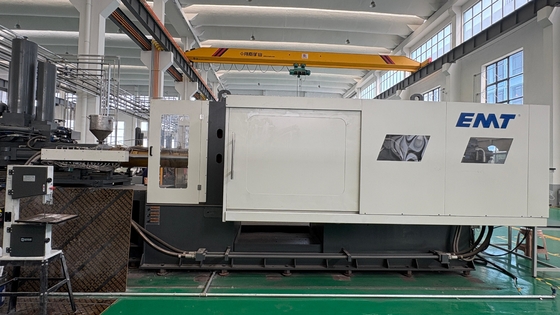

6500kN EMT Thixomolding Machine For Magnesium Alloy Products Perfect 3C Electronics And Aerospace Industry
| Brand Name: | EMT |
| Model Number: | MG-650 |
| MOQ: | 1 |
| Price: | Negotiable |
Detail Information
Place of Origin:
China
Certification:
ISO9001,IATF 16949
Control System:
PLC Control
Injection Stroke:
300 Mm
Mold Thickness:
350-900mm
Total Electric Capacity:
140 KW
Material Compatibility:
Magnesium Alloys
Casting Method:
Die Casting
Locking Force:
6500kN
Ejector Stroke:
150 Mm
Forming Process:
Thixoforming
Forming Way:
Semi-solid
Product Type:
Die Casting Machine
Machine Type:
Thixomolding Machine
Highlight:
3C Electronics Thixomolding Machine
,6500kN Thixomolding Machine
,Aerospace Thixomolding Machine
Product Description
EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry.
| No. | DESCRIPTION | UNIT | MG650 |
| 1 | Mold Locking Force | kN | 6500 |
| 2 | Clamping Plate Dimension (Horizontal × Vertical) | mm | 1300×1300 |
| 3 | Screw Diameter | mm | 84 |
| 4 | Maximum Injection Speed Of Screw | m∕s | 5 |
| 5 | Rotation Speed Of Screw | r∕min | 10-300 |
| 6 | Systematic Operating Pressure | MPa | 16 |
| 7 | Electric Motor Power | kW | 45 |
| 8 | Machine’s Overall Dimension (L×W×H) | m | 9.5×2.3×3.3 |
Full range of thixomolding equipment for magnesium alloys: covering multiple scene requirements:
The magnesium alloy thixomolding equipment independently developed by EMT has a complete tonnage matrix (300T, 650T, 800T, 1500T, 2500T, 4000T), which meets the diversified production needs from small precision parts (3C electronics, medical precision parts) to large structural parts (new energy vehicles, aerospace, industrial equipment). It can form magnesium alloy products ranging from 0.01-20kg, and provide selection services according to the customer's magnesium alloy product situation.
Service industry:
- 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.
- New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.
- Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.
- Medical field: surgical instruments, medical equipment, etc.
- Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
