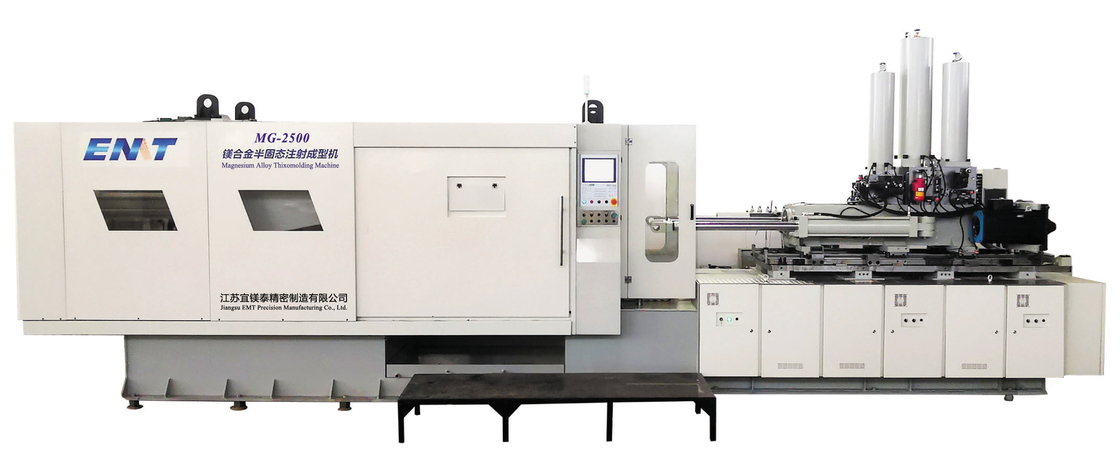

25000kN Magnesium Alloy Die Casting Equipment And Machines

Brand Name:	EMT
Model Number:	MG-2500
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，IATF16949

Injection Pressure:

100 MPa

Mold Locking Force:

25000kN

Application:

Automotive Industry

Control System:

PLC

Casting Method:

Die Casting

Operational:

Safety

Operate:

Simple

Forming Process:

Thixoforming

Warranty:

1 Year

Weight:

150000kg

Power Supply:

380V/50Hz

Product Type:

Die Casting Machine

Highlight:

Magnesium Alloy Die Casting Equipment

Magnesium Alloy Die Casting Machines

Product Description

25000kN Semi-Solid Slurry Preparation Magnesium Alloy Die Casting Machine for Medical Product Manufacturing

No.	DESCRIPTION	UNIT	MG2500
1	Mold Locking Force	kN	25000
2	Mold Lock Stroke	mm	1500
3	Screw Diameter	mm	150
4	Injection Pressure	MPa	100
5	Theoretical Injection Volume	cm³	7068
6	Systematic Operating Pressure	MPa	16
7	Ejector Force	kN	750
8	Machine’s Overall Dimension (L×W×H)	m	16.3×6.7×5

The principle of the semi-solid injection molding equipment for magnesium alloys:

The magnesium alloy particle raw material enters the semi-solid slurry preparation tube (material tube) by negative pressure and gravity, and is hot melted in the material tube to form a solid-liquid two-phase mixture (semi-solid slurry) under the action of screw stirring and shearing. Due to the stirring and shearing, the solid phase becomes spherical and the slurry has good fluidity. In this state, the slurry is high-speed pressed into the mold for molding, cooled and shaped, and the integrated magnesium alloy product can be obtained.

25000kN Magnesium Alloy Die Casting Equipment And Machines 0

Applied Industry:3C Electronic Products

25000kN Magnesium Alloy Die Casting Equipment And Machines 1

Applied Industry:New Energy Vehicles

25000kN Magnesium Alloy Die Casting Equipment And Machines 2

Applied Industry:Outdoor Products

25000kN Magnesium Alloy Die Casting Equipment And Machines 3

Applied Industry:Medical Products

25000kN Magnesium Alloy Die Casting Equipment And Machines 4
