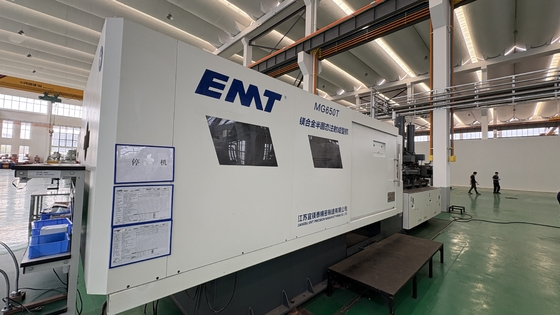

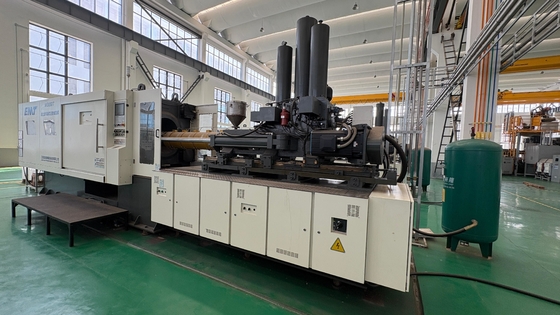

6500kN Semi Solid Forming Die Casting Machine Making Magnesium Alloy High Efficiency High Theoretical Injection Volume
| Brand Name: | EMT |
| Model Number: | MG-650 |
| MOQ: | 1 |
| Price: | Negotiable |
Detail Information
Place of Origin:
China
Certification:
ISO9001,IATF 16949
Control System:
PLC Control
Die Height:
350-900mm
Dimensions:
Customer Required
Material:
Magnesium Alloy
Locking Force:
6500
Forming Way:
Semi-solid
Operational:
Safety
Operate:
Simple
Highlight:
Semi Solid Forming Die Casting Machine
,Magnesium Alloy Making Die Casting Machine
,Die Casting Machine Making Magnesium Alloy
Product Description
6500kN Thixomolding Magnesium Alloy Machine Die Casting Semi - Solid Forming
| No. | DESCRIPTION | UNIT | MG650 |
| 1 | Mold Locking Force | kN | 6500 |
| 2 | Mold Lock Stroke | mm | 720 |
| 3 | Screw Diameter | mm | 84 |
| 4 | Injection Pressure | MPa | 120 |
| 5 | Theoretical Injection Volume | cm³ | 1662 |
| 6 | Systematic Operating Pressure | MPa | 16 |
| 7 | Ejector Force | kN | 250 |
| 8 | Machine’s Overall Dimension (L×W×H) | m | 9.5×2.3×3.3 |
