High Performance Thixomolding Machine MG-650T 84mm Screw Diameter 120MPa Injection Pressure

Name: High Performance Thixomolding Machine MG-650T 84mm Screw Diameter 120MPa Injection Pressure
Brand: Jiangsu EMT Precision Manufacturing Co., Ltd.
SKU: MG-650T
Availability: InStock

Brand Name:	EMT
Model Number:	MG-650T
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T,Western Union
Supply Ability:	60000PCS /Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

TS16949、IOS9001

Theoretical Injection Volume:

1662cm³

Theoretical Injection Mass:

2426g

Forming Process:

Thixoforming

Systematic Operating Pressure:

16MPa

Forming Way:

Semi-solid

Locking Force:

6500

Injection Temperature:

600-800 Degrees Celsius

Mold Locking Force:

8000KN

Energy Saving:

Yes

Material Compatibility:

Magnesium Alloys

Technology:

Thixomolding

Injection Speed:

100-500 Mm/s

Dimensions:

Customer Required

Product Type:

Injection Molding Machine

Injection Force:

100-500 Tons

Power Supply:

380V, 50Hz

Mold Clamping Force:

100-500 Tons

Forming Process:

Semi-solid Thixoforming

Control System:

PLC

Material:

Magnesium Alloy

Production Capacity:

500-1000 Pieces Per Hour

Packaging Details:

According to customer needs

Supply Ability:

60000PCS /Month

Highlight:

High Performance thixomolding machine

84mm thixomolding machine

Product Description

High-Performance Thixomolding Machine MG-650T with 84mm Screw Diameter and 120MPa Injection Pressure

No.	DESCRIPTION	UNIT	MG650
I. Mold locking
1	Mold Locking Force	kN	6500
2	Mold Lock Stroke	mm	720
II. Injection
1	Screw Diameter	mm	84
2	Injection Pressure	MPa	120
3	Theoretical Injection Volume	cm³	1662
4	Theoretical Injection Mass	g	2426
5	Theoretical Injection Rate	cm³∕s	25491
III. Others
1	Systematic Operating Pressure	MPa	16
2	Ejector Force	kN	250
3	Ejector Stroke	mm	150
4	Electric Motor Power	kW	45
10	Machine’s Overall Dimension (L×W×H)	m	9.5×2.3×3.3

During the thixomolding process, metals and alloys are heated to the temperature of transition from solid to liquid; here a thixotropic state is achieved, in which the viscosity of the material decreases. As a result, the metal under slight pressure is able to take the desired shape - very complex configurations become possible.

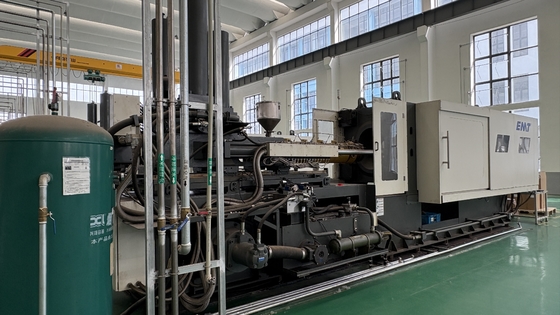

High Performance Thixomolding Machine MG-650T 84mm Screw Diameter 120MPa Injection Pressure 0

Acceptance:

1. Acceptance standards: to be accepted on the basis of the requirements set out in the technical agreement and acceptance standards provided by the seller.

2. Acceptance procedures: Acceptance will be divided into factory acceptance and final acceptance.

3. At the time of factory acceptance, the seller shall provide certificates of quality and record of factory test signed by professional personnel (including test data and major parts and components of the equipment, and record of raw material inspection, etc).

4. Final acceptance shall be performed on the buyer’s installation site. Inspection of various performances of equipment and test acceptance shall be performed subject to the acceptance standards and technical agreements. (The buyer shall be responsible for molds and their process).

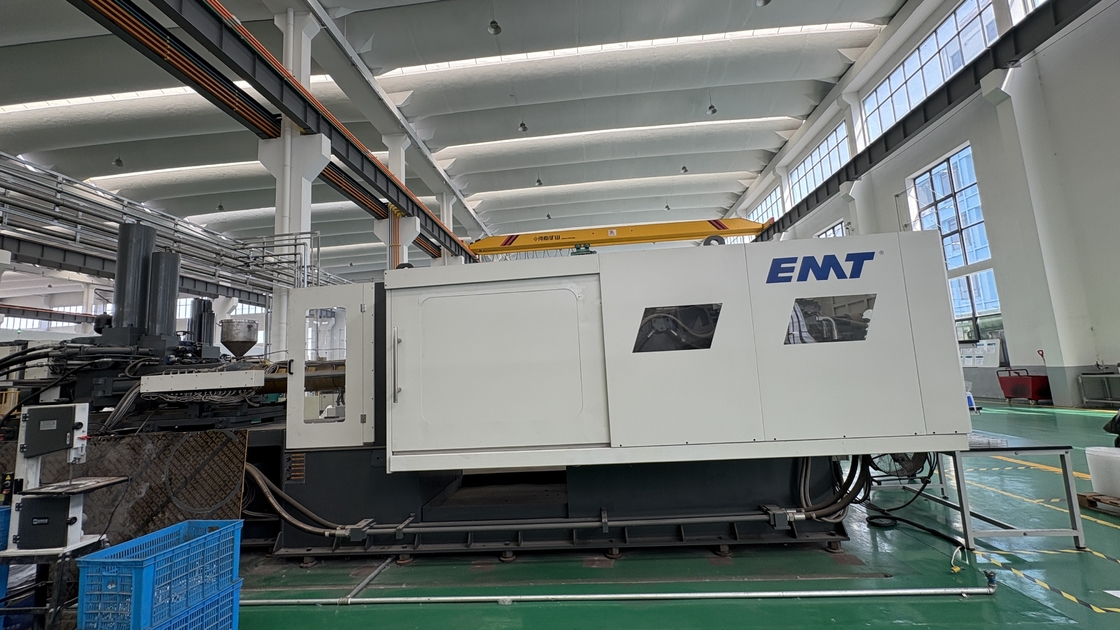

High Performance Thixomolding Machine MG-650T 84mm Screw Diameter 120MPa Injection Pressure 1

High Performance Thixomolding Machine MG-650T 84mm Screw Diameter 120MPa Injection Pressure 2

High Performance Thixomolding Machine MG-650T 84mm Screw Diameter 120MPa Injection Pressure 3
