Die Casting Magnesium Alloy Case For Night Vision Instrument

Name: Die Casting Magnesium Alloy Case For Night Vision Instrument
Brand: Jiangsu EMT Precision Manufacturing Co., Ltd.
SKU: Customized
Availability: InStock

Brand Name:	EMT
Model Number:	Customized
MOQ:	10000

Detail Information

Product Description

Detail Information

Shaping Mode:

Die Casting

Material:

AZ91D

Product Name:

Magnesium Alloy Case

Application:

Night Vision Instrument

Size:

Customized

Feature:

High Strength-to-weight Ratio

Highlight:

Die Casting Magnesium Alloy Case

Magnesium Alloy Case For Night Vision

Die Casting Magnesium Alloy Case

Product Description

Die Casting Magnesium Alloy Case For Night Vision Instrument

What is the advantage for magnesium alloy?
The advantage of magnesium alloys to be used in such applications is their light weight, high strength-to-weight ratio, high stiffness-to-weight ratio, castability, machinability, and great damping.

What is AZ91D?
Alloy AZ91D is the most widely used magnesium die cast alloy and has an excellent combination of mechanical properties, corrosion resistance, and castability. Corrosion resistance is achieved by enforcing very strict limits on three metallic impurities—iron, copper and nickel.

Is magnesium better than aluminum for laptop?
Magnesium is generally easier to use than aluminum in terms of manufacturing, opening up new design capabilities for laptop and tablet makers. Unfortunately, it's also considerably more expensive as a metal.

What are magnesium alloys used for?

Magnesium alloys are used for both cast and forged components, with the aluminium-containing alloys usually used for casting and the zirconium-containing ones for forgings; the zirconium-based alloys can be used at higher temperatures and are popular in aerospace.

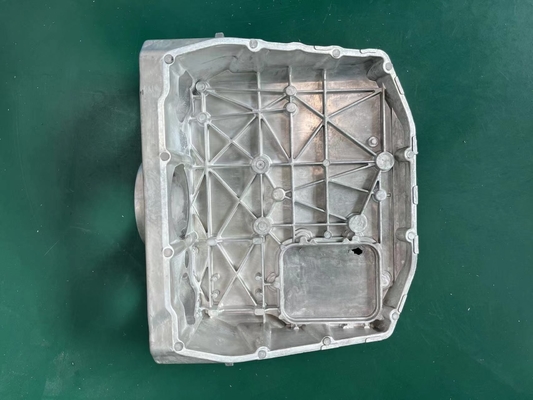

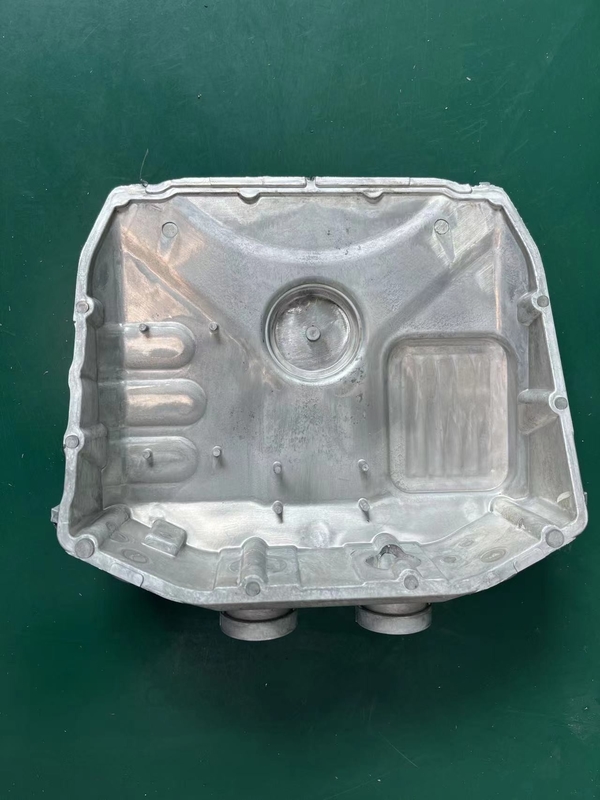

This product is the shell of night vision instrument, material is magnesium alloy. This product is customized according to customer requirements. If you also need it, you can provide me with the size drawings

Horizontal comparison table of physical properties of magnesium alloys
		elasticity modulus(AZ91D)	elasticity modulus(ADC12)	elasticity modulus	elasticity modulus	stainless steel	pc engineering plastics
specific gravity	g/cm2	1.82	2.7	1.45	7.86	1.03	1.23
melting point	℃	596	595	480	1520	90(Tg)	160(Tg)
Degree of heat conduction	W/mk	72	100	0.7803	42	0.2	0.2
strength of extension	Mpa	280	315	819	517	35	104
yield strength	Mpa	160	160	315	400	NA	NA
specific strength	Pa/(kg/m3)	187	106	564	80	41	102
elasticity modulus	Gpa	45	71	89	200	2.1	6.7
