Telephone Shell CNC Dilling Mobile Telephone Phone Case

Brand Name:	EMT
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T, Western Union
Supply Ability:	50000PCS /Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

TS16949、IOS9001

Surface Treatment:

Powder Coating, Electroplating, Oxide, Anodization

Material:

Magnesium Alloy

Technicsshielding:

One Piece,laser Cut, Bend, Weld, Stamp

Drawing Formats:

PRO/E, Auto CAD, Solid Works, UG, CAD/ CAM / CAE, PDF

Processing:

CNC Turning, Milling Parts, Dilling, Auto Lathe, Tapping, Bushing, Surface Treatment, Etc.

Testing Equipment:

CMM / Tool Microscope / Multi-joint Arm / Automatic Height Gauge / Manual Height Gauge / Dial Gauge / Roughness Measurement

Model Of Production Equipment:

300T Magnesium Alloy Semi-solid Injection Molding Machine

Packaging Details:

According to customer needs

Supply Ability:

50000PCS /Month

Highlight:

TS16949 telephone shell

Dilling mobile telephone shell

CNC telephone phone case

Product Description

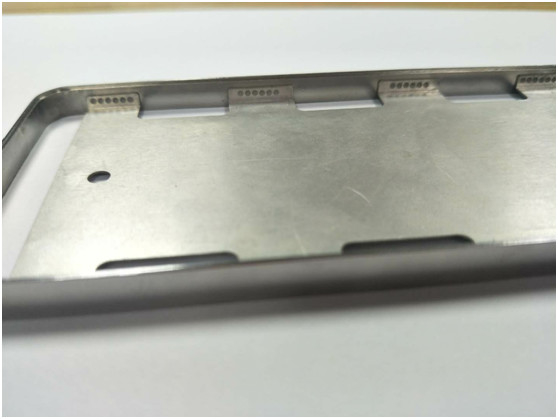

Telephone Shell CNC Dilling Mobile Telephone Phone Case

Specification:

Description	mobile telephone shell
Specification
Thickness	0.5mm

High rigidity:

The specific rigidity of magnesium alloy is similar to that of aluminum alloy and zinc alloy, but it is 10 times of that of ordinary plastic, which is superior to plastic materials in strength.

Comparison of mechanical properties of several die-casting alloys (in parentheses is the ratio to density):

Description:		Magnesium alloy (AZ91D)	Aluminum alloy(A380)	zinc alloy (AG40A)
Density (g/cm3)		1.8	2.7	6.7
Tensile strength (Mpa)		230 (130)	330 (120)	280 (42)
Yield strength (Mpa)		160(88)	170(61)	-
Shear strength (Mpa)		140(77)	190(69)	210(32)
Elongation (%)		3	3	10
Tensile modulus of Elasticity (Gpa)		45(25)	71(26)	-
Shear stiffness modulus (Gpa)		17(9)	27(10)	-
Brinell hardness		63	80	82
Fatigue strength Moore 5 * 100000000 (Mpa)		97(54)	150(54)	48(7.1)
Creep strength(Mpa)	70. F, 100 hours	140(77)	170(61)	76(11)
	200. F, 100 hours	80(50)	160(59)	24(3.6)
	70. F, 100 hours	140(77)	170(61)	48(7.2)
Specific damping capacity (%)	5000psi	25	1	18
Specific damping capacity (%)	15000psi	53	4	40

Telephone Shell CNC Dilling Mobile Telephone Phone Case 0

Advantage:

FAQ:
1. Q:Are you a factory or a trading company?
A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.
2. Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?
A: Yes, with written standard procedures.
4. Q: Is there a procedure to conduct random product inspections after final packaging?
A: Yes, with clear standard and written inspection records.
5. Q: How can I get a quotation?
A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)
6. Q: What is your payment terms?
A: T/T, Western Union, etc.
