Magnesium Alloy Metal Casting Machine T-Groove Way 110Mpa Injection Molding Equipment
| Brand Name: | EMT |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000PCS /Month |
Magnesium Alloy metal casting machine
,T-groove way metal casting machine
,110Mpa injection molding equipment

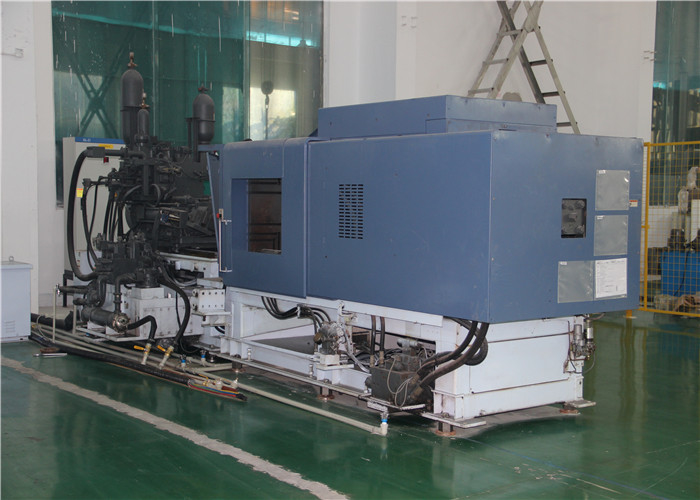

Mg-300 magnesium alloy semi-solid injection molding machine
Technical parameters
| No. | Description | Unit | MG-300 |
| I. Mold locking | |||
| 1 | Mold locking force | kN | 3000 |
| 2 | Mold lock stroke | mm | 550 |
| 3 | Mold thickness (minimum to maximum) | mm | 250-650 |
| 4 | Clamping plate dimension (horizontal × vertical) | mm | 970x960 |
| 5 | Column spacing (horizontal × vertical) | mm | 630×630 |
| 6 | Way of mold installation | T-groove way | |
| II. Injection | |||
| 1 | Screw diameter | mm | 51 |
| 2 | Injection pressure | MPa | 110 |
| 3 | Theoretical injection volume | cm³ | 294 |
| 4 | Theoretical injection mass | g | 424 |
| 5 | Theoretical injection rate | cm³∕s | 9031 |
| 6 | Screw’s maximum injection speed | m∕s | 5 |
| 7 | Screw’s rotation speed | r∕min | 10-300 |
| 8 | Injection stroke | mm | 150 |
| 9 | Injection nozzle dimension | mm | φ13×R25 |
| 10 | Injection nozzle inlet | mm | 50 |
| 11 | Injection nozzle contact force | kN | 300 |
| 12 | Injection device position | mm | 0,-100 |
| I. Others | |||
| 1 | Systematic operating pressure | MPa | 16 |
| 2 | Ejection force | kN | 180 |
| 3 | Ejection stroke | mm | 125 |
| 4 | Electric motor power | kW | 37 |
| 5 | Heater’s output power | kW | 17 |
| 6 | Melting servo motor power | kW | 16 |
| 7 | Total electric capacity | kW | 70 |
| 8 | Oil tank capacity | L | 600 |
| 9 | Machine weight | kg | 16000 |
| 10 | Machine’s overall dimension (L×W×H) | m | 6.8×1.8×2.6 |
Advantage:
FAQ:
1. Q:Are you a factory or a trading company?
A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.
2. Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?
A: Yes, with written standard procedures.
4. Q: Is there a procedure to conduct random product inspections after final packaging?
A: Yes, with clear standard and written inspection records.
5. Q: How can I get a quotation?
A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)
6. Q: What is your payment terms?
A: T/T, Western Union, etc.
