3000KN 110Mpa Small Injection Molding Machine Magnesium Alloy Thixomolding Process
| Brand Name: | EMT |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000PCS /Month |
110Mpa small injection molding machine
,3000KN small injection molding machine
,Magnesium alloy thixomolding process
3000KN 110Mpa Small Injection Molding Machine Magnesium Alloy Thixomolding Process

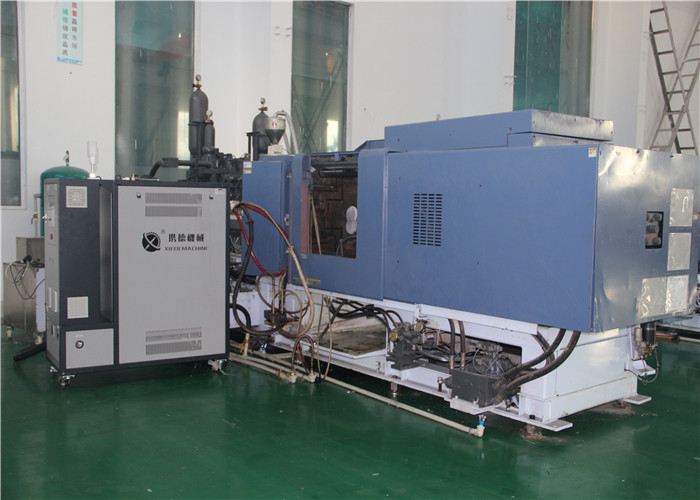

Mg-300 magnesium alloy semi-solid injection molding machine
Technical parameters
| No. | Description | Unit | MG-300 |
| I. Mold locking | |||
| 1 | Mold locking force | kN | 3000 |
| 2 | Mold lock stroke | mm | 550 |
| 3 | Mold thickness (minimum to maximum) | mm | 250-650 |
| 4 | Clamping plate dimension (horizontal × vertical) | mm | 970x960 |
| 5 | Column spacing (horizontal × vertical) | mm | 630×630 |
| 6 | Way of mold installation | T-groove way | |
| II. Injection | |||
| 1 | Screw diameter | mm | 51 |
| 2 | Injection pressure | MPa | 110 |
| 3 | Theoretical injection volume | cm³ | 294 |
| 4 | Theoretical injection mass | g | 424 |
| 5 | Theoretical injection rate | cm³∕s | 9031 |
| 6 | Screw’s maximum injection speed | m∕s | 5 |
| 7 | Screw’s rotation speed | r∕min | 10-300 |
| 8 | Injection stroke | mm | 150 |
| 9 | Injection nozzle dimension | mm | φ13×R25 |
| 10 | Injection nozzle inlet | mm | 50 |
| 11 | Injection nozzle contact force | kN | 300 |
| 12 | Injection device position | mm | 0,-100 |
| I. Others | |||
| 1 | Systematic operating pressure | MPa | 16 |
| 2 | Ejection force | kN | 180 |
| 3 | Ejection stroke | mm | 125 |
| 4 | Electric motor power | kW | 37 |
| 5 | Heater’s output power | kW | 17 |
| 6 | Melting servo motor power | kW | 16 |
| 7 | Total electric capacity | kW | 70 |
| 8 | Oil tank capacity | L | 600 |
| 9 | Machine weight | kg | 16000 |
| 10 | Machine’s overall dimension (L×W×H) | m | 6.8×1.8×2.6 |
Advantages of magnesium alloy
1. Magnesium alloy has low density but high strength and good rigidity. Among existing engineering metals, magnesium has the lowest density, 1/5 of steel, 1/4 of zinc, and 2/3 of aluminum. The rigidity of ordinary cast magnesium alloy is the same as that of cast aluminum alloy, so its specific strength is obviously higher than that of aluminum alloy. The stiffness of magnesium alloy increases with the increase of thickness, so the good manufacturing rigidity of magnesium alloy is very beneficial to the design of the whole component.
2. Magnesium alloy has good toughness and strong shock absorption. Magnesium alloys tend to deform greatly when subjected to external forces. However, when subjected to impact load, the energy absorbed is 1.5 times that of aluminum, so it is suitable for the impact of parts - wheels; Magnesium alloy has high damping capacity and is an ideal material for avoiding fatigue caused by vibration and noise.
3. Magnesium alloy has low heat capacity, fast solidification speed and good die casting performance. Magnesium alloy is a good die casting material, it has good fluidity and rapid solidification rate, can produce fine surface, clear corners parts, and can prevent excessive shrinkage to ensure dimensional tolerance. Due to the low heat capacity of magnesium alloy, compared with the production of the same aluminum alloy casting, the production efficiency is 40% to 50% higher, and the casting size is stable, high precision, and good surface finish.
4. Magnesium alloy has excellent machinability. Magnesium alloy is the most easily machined of all the commonly used metals. High cutting speed and cheap cutting tools can be used in processing, tool consumption is low. And without grinding and polishing, a very smooth surface can be obtained with cutting fluid.
Advantage:
FAQ:
1. Q:Are you a factory or a trading company?
A:We are a factory which has been focus on Magnesium alloy deep processing lightweight field & semi-solid injection molding of Magnesium alloy for more than 16+ years.
2. Q: Is there quality control on all production lines?
A: Yes, all production lines have adequate quality control.
3. Q: Has the company established and implemented a standard procedure for purchasing contract review and approval?
A: Yes, with written standard procedures.
4. Q: Is there a procedure to conduct random product inspections after final packaging?
A: Yes, with clear standard and written inspection records.
5. Q: How can I get a quotation?
A: Please kindly send us following information 1) Product drawings by STEP/STP/PRT/PDF/IGS format etc. 2) Material, size and surface treatment request. 3) Required quantity. Normally,the quote will be offer in 1-6 hours. :)
6. Q: What is your payment terms?
A: T/T, Western Union, etc.
