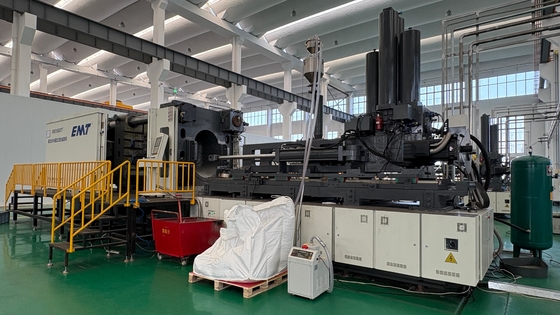

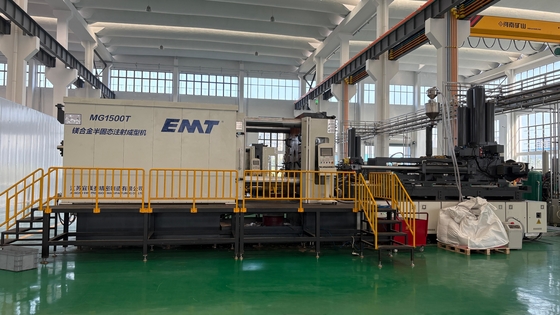

16MPa Systematic Operating Pressure Magnesium Die Casting System 15000kN Heavy Duty For Solid Liquid Mixture

Name: 16MPa Systematic Operating Pressure Magnesium Die Casting System 15000kN Heavy Duty For Solid Liquid Mixture
Brand: Jiangsu EMT Precision Manufacturing Co., Ltd.
SKU: MG-1500
Availability: InStock

Brand Name:	EMT
Model Number:	MG-1500
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，IATF16949

Forming Technology:

Thixomolding

Product Type:

Die Casting Machine

Power Supply:

380V/50Hz

Forming Way:

Semi-solid

Dimensions:

Customer Required

Mold Locking Force:

15000kN

Casting Method:

Die Casting

Oem:

Yes

Operate:

Simple

Die Clamping Stroke:

800mm

Operational:

Safety

Injection Pressure:

100 MPa

Highlight:

16MPa Magnesium Die Casting System

15000kN Magnesium Die Casting System

Heavy Duty Magnesium Die Casting Machine

Product Description

16MPa Systematic Operating Pressure Magnesium Alloy Die Casting Machine 15000kN for Solid-liquid Forming

No.	DESCRIPTION	UNIT	MG1500
1	Mold Locking Force	kN	15000
2	Mold Lock Stroke	mm	1200
3	Screw Diameter	mm	130
4	Injection Pressure	MPa	100
5	Theoretical Injection Volume	cm³	4635
6	Systematic Operating Pressure	MPa	16
7	Ejector Force	kN	570
8	Machine’s Overall Dimension (L×W×H)	m	14×6.4×4.5

16MPa Systematic Operating Pressure Magnesium Die Casting System 15000kN Heavy Duty For Solid Liquid Mixture 0

The principle of the semi-solid injection molding equipment for magnesium alloys:

The magnesium alloy particle raw material enters the semi-solid slurry preparation tube (material tube) by negative pressure and gravity, and is hot melted in the material tube to form a solid-liquid two-phase mixture (semi-solid slurry) under the action of screw stirring and shearing. Due to the stirring and shearing, the solid phase becomes spherical and the slurry has good fluidity. In this state, the slurry is high-speed pressed into the mold for molding, cooled and shaped, and the integrated magnesium alloy product can be obtained.

Applied Industry:3C Electronic Products

16MPa Systematic Operating Pressure Magnesium Die Casting System 15000kN Heavy Duty For Solid Liquid Mixture 1

Applied Industry:New Energy Vehicles

16MPa Systematic Operating Pressure Magnesium Die Casting System 15000kN Heavy Duty For Solid Liquid Mixture 2

Applied Industry:Outdoor Products

16MPa Systematic Operating Pressure Magnesium Die Casting System 15000kN Heavy Duty For Solid Liquid Mixture 3

Applied Industry:Medical Products

16MPa Systematic Operating Pressure Magnesium Die Casting System 15000kN Heavy Duty For Solid Liquid Mixture 4
