6500kN EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry

Brand Name:	EMT
Model Number:	MG-650
MOQ:	1
Price:	Negotiable

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,IATF 16949

Control System:

PLC Control

Injection Stroke:

300 Mm

Mold Thickness:

350-900mm

Total Electric Capacity:

140 KW

Material Compatibility:

Magnesium Alloys

Casting Method:

Die Casting

Locking Force:

6500kN

Ejector Stroke:

150 Mm

Forming Process:

Thixoforming

Forming Way:

Semi-solid

Product Type:

Die Casting Machine

Machine Type:

Thixomolding Machine

Product Description

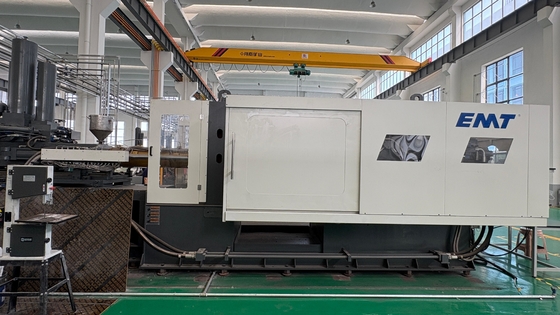

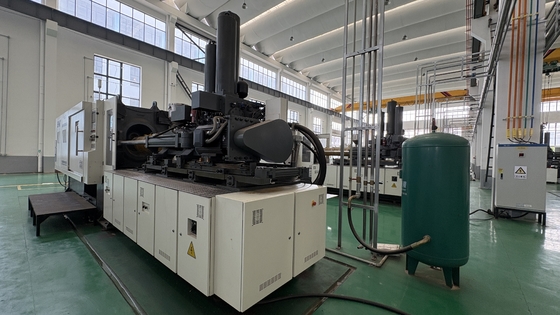

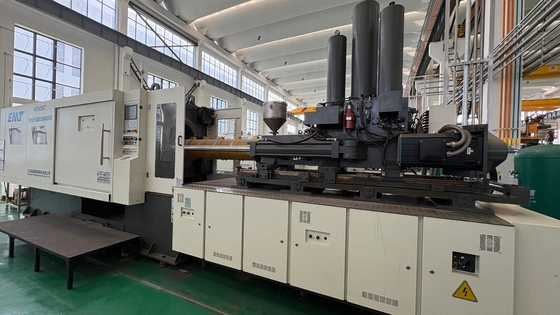

EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry.

No.	DESCRIPTION	UNIT	MG650
1	Mold Locking Force	kN	6500
2	Clamping Plate Dimension (Horizontal × Vertical)	mm	1300×1300
3	Screw Diameter	mm	84
4	Maximum Injection Speed Of Screw	m∕s	5
5	Rotation Speed Of Screw	r∕min	10-300
6	Systematic Operating Pressure	MPa	16
7	Electric Motor Power	kW	45
8	Machine’s Overall Dimension (L×W×H)	m	9.5×2.3×3.3

Full range of thixomolding equipment for magnesium alloys: covering multiple scene requirements:

The magnesium alloy thixomolding equipment independently developed by EMT has a complete tonnage matrix (300T, 650T, 800T, 1500T, 2500T, 4000T), which meets the diversified production needs from small precision parts (3C electronics, medical precision parts) to large structural parts (new energy vehicles, aerospace, industrial equipment). It can form magnesium alloy products ranging from 0.01-20kg, and provide selection services according to the customer's magnesium alloy product situation.

6500kN EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry 0

Service industry:

3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

6500kN EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry 1

New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

6500kN EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry 2

Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

6500kN EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry 3

Medical field: surgical instruments, medical equipment, etc.

6500kN EMT Thixomolding Machine for Magnesium Alloy Products Perfect for 3C Electronics and Aerospace Industry 4

Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
