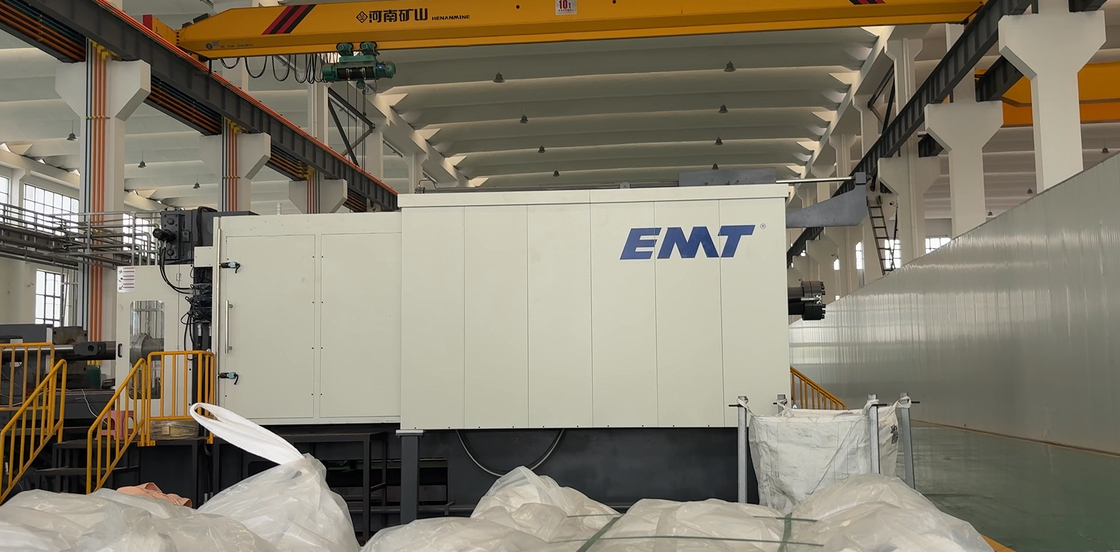

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine

Name: EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine
Brand: Jiangsu EMT Precision Manufacturing Co., Ltd.
SKU: MG-4000
Availability: InStock

Brand Name:	EMT
Model Number:	MG-4000
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，IATF16949

Mold Locking Force:

40000kN

Weight:

270000kg

Energy Saving:

Yes

Control System:

PLC Control

Injection Speed:

5m/s

Material:

Magnesium Alloy

Casting Method:

High Pressure Die Casting

Die Height:

900-2100mm

Max. Casting Weight:

19.8kg

Injection Pressure:

100 MPa

Oem:

Yes

Power Supply:

380V/50Hz

Warranty:

1 Year

Total Electric Capacity:

550 KW

Power Source:

Electric

Product Type:

Die Casting Machine

Injection Stroke:

600 Mm

Operation Mode:

Automatic

Operational:

Safety

Technology:

Thixomolding

Highlight:

EMT MG-4000 magnesium alloy die casting machine

Thixomolding machine for 3C electronics

High-performance die casting machine for aerospace

Product Description

High-Performance EMT MG-4000 Magnesium Alloy Die Casting Machine for Products in 3C Electronics Aerospace and Automotive Industries

No.	DESCRIPTION	UNIT	MG4000
1	Mold Locking Force	kN	40000
2	Way Of Mold Installation	-	T-groove way
3	Screw Diameter	mm	170
4	Injection Nozzle Inlet	mm	180
5	Injection Nozzle Contact Force	kN	1140
6	Systematic Operating Pressure	MPa	16
7	Melting Servo Motor Power	kW	100
8	Machine’s Overall Dimension (L×W×H)	m	19×7.2×6

The EMT MG-4000 Magnesium Alloy Semi - Solid Injection Molding Machine is a high - performance core equipment independently developed by EMT. Precisely designed for the magnesium alloy semi - solid injection molding process, it is widely suitable for the production needs of high - precision and high - quality magnesium alloy products such as key automotive components, high - end electronic product casings, and aerospace precision components.

Integrating cutting - edge technology and innovative design concepts, this equipment is based on safety and stability, and also has significant advantages such as environmental protection and low consumption, high - efficiency output, and precision molding. It provides customers with reliable production solutions from research and development to mass production, helping to enhance product competitiveness.

Service industry:

3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine 1

New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine 2

Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine 3

Medical field: surgical instruments, medical equipment, etc.

EMT MG-4000 40000kN Magnesium Alloy Die Casting Machine 4

Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
