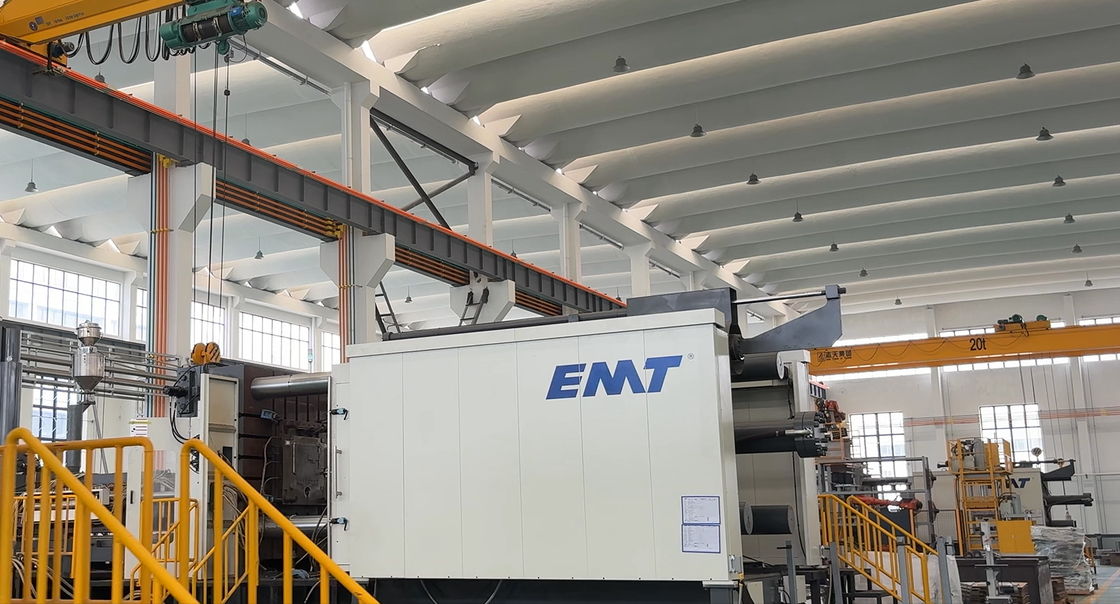

EMT MG-2500 25000KN Magnesium Alloy Die Casting Machine for 3C Electronics

Name: EMT MG-2500 25000KN Magnesium Alloy Die Casting Machine for 3C Electronics
Brand: Jiangsu EMT Precision Manufacturing Co., Ltd.
SKU: MG-2500
Availability: InStock

Brand Name:	EMT
Model Number:	MG-2500
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，IATF16949

Power Supply:

380V/50Hz

Product Type:

Injection Molding Machine

Production Capacity:

High

Mold Locking Force:

25000KN

Application:

Manufacturing Of Lightweight And High-strength Metal Components

Screw Speed:

10-285rpm

Operate:

Simple

Injection Pressure:

100MPa

Operational:

Safety

Warranty:

1 Year

Screw Diameter:

150mm

Control System:

PLC Control

Power Source:

Electric

Power Consumption:

400kW

Oem:

Yes

After-Sales Service Provided:

Engineers Available To Service Machinery Overseas

Material Compatibility:

Magnesium Alloys

Casting Method:

High Pressure Die Casting

Forming Technology:

Thixomolding

Injection Speed:

5m/s

Operation Mode:

Automatic

Highlight:

environmental friendly magnesium alloy die casting machine

3C electronics magnesium die casting machine

MG-2500 magnesium alloy casting machine

Product Description

EMT MG-2500 Environmental Friendly Magnesium Alloy Die Casting Machine for 3C Electronics Production

No.	DESCRIPTION	UNIT	MG2500
1	Mold Locking Force	kN	25000
2	Way Of Mold Installation	-	T-groove way
3	Screw Diameter	mm	150
4	Injection Nozzle Inlet	mm	180
5	Injection Nozzle Contact Force	kN	1100
6	Systematic Operating Pressure	MPa	16
7	Melting Servo Motor Power	kW	100
8	Machine’s Overall Dimension (L×W×H)	m	16.3×6.7×5

The EMT MG-2500 Magnesium Alloy Semi - Solid Injection Molding Machine is a high - performance core equipment independently developed by EMT. Precisely designed for the magnesium alloy semi - solid injection molding process, it is widely suitable for the production needs of high - precision and high - quality magnesium alloy products such as key automotive components, high - end electronic product casings, and aerospace precision components.

Integrating cutting - edge technology and innovative design concepts, this equipment is based on safety and stability, and also has significant advantages such as environmental protection and low consumption, high - efficiency output, and precision molding. It provides customers with reliable production solutions from research and development to mass production, helping to enhance product competitiveness.

Service industry:

3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

EMT MG-2500 25000KN Magnesium Alloy Die Casting Machine for 3C Electronics 1

New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

EMT MG-2500 25000KN Magnesium Alloy Die Casting Machine for 3C Electronics 2

Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

EMT MG-2500 25000KN Magnesium Alloy Die Casting Machine for 3C Electronics 3

Medical field: surgical instruments, medical equipment, etc.

EMT MG-2500 25000KN Magnesium Alloy Die Casting Machine for 3C Electronics 4

Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
