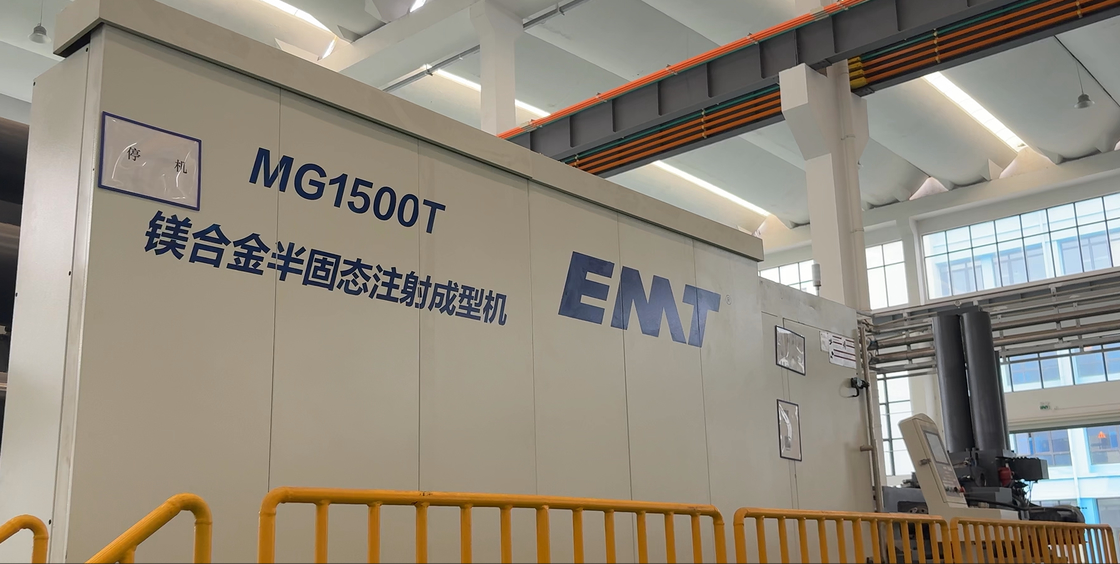

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine

Name: EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine
Brand: Jiangsu EMT Precision Manufacturing Co., Ltd.
SKU: MG-1500
Availability: InStock

Brand Name:	EMT
Model Number:	MG-1500
MOQ:	1

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001，IATF16949

Product Type:

Injection Molding Machine

Oem:

Yes

Operational:

Safety

Technology:

Thixomolding

Power Supply:

AC 380V, 50Hz

Die Height:

500-1400mm

Power Source:

Electric

Injection Pressure:

100 MPa

Casting Method:

Die Casting

Material Compatibility:

Magnesium Alloys

Mold Locking Force:

15000kN

Control System:

PLC

Operate:

Simple

Operating System:

Touch Screen Or Computer

Warranty:

1 Year

Forming Process:

Semi-solid Thixoforming

Energy Saving:

Yes

Highlight:

high-precision magnesium alloy molding machine

magnesium alloy die casting machine for aerospace

3C industry magnesium alloy molding solution

Product Description

EMT MG-1500 The Ultimate Solution for High-Precision Magnesium Alloy Molding in New Energy Aerospace and 3C Industries

No.	DESCRIPTION	UNIT	MG1500
1	Mold Locking Force	kN	15000
2	Way Of Mold Installation	-	T-groove way
3	Screw Diameter	mm	130
4	Injection Nozzle Inlet	mm	150
5	Injection Nozzle Contact Force	kN	800
6	Systematic Operating Pressure	MPa	16
7	Melting Servo Motor Power	kW	80
8	Machine’s Overall Dimension (L×W×H)	m	14×6.4×4.5

The EMT MG-1500 Magnesium Alloy Semi - Solid Injection Molding Machine is a high - performance core equipment independently developed by EMT. Precisely designed for the magnesium alloy semi - solid injection molding process, it is widely suitable for the production needs of high - precision and high - quality magnesium alloy products such as key automotive components, high - end electronic product casings, and aerospace precision components.

Integrating cutting - edge technology and innovative design concepts, this equipment is based on safety and stability, and also has significant advantages such as environmental protection and low consumption, high - efficiency output, and precision molding. It provides customers with reliable production solutions from research and development to mass production, helping to enhance product competitiveness.

Service industry:

3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 1

New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 2

Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 3

Medical field: surgical instruments, medical equipment, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 4

Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
